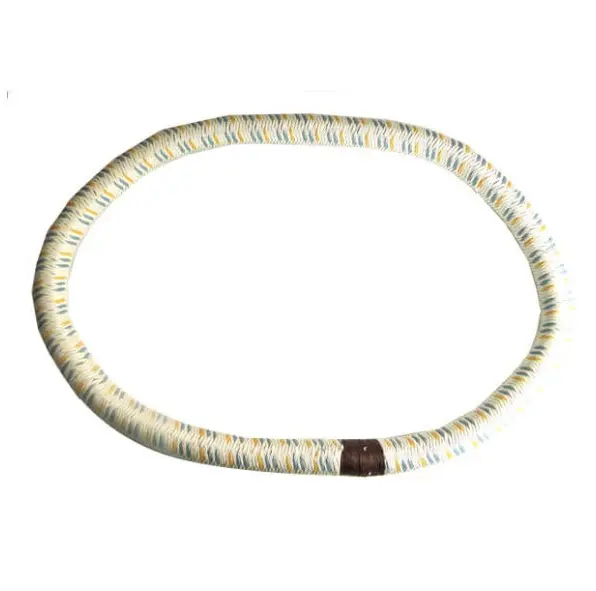

Shock Cord Ring 1080Hd
Part Number(s): 06-00823, 1080HD
Unit of Measure Name:
Units
Internal Reference:
RX1-06-00823
Overview
| An endless elastic ring composed of multiple strands of natural rubber, wound into a circular skein. Braided cover is high grade yarn. Manufactured to meet specification MIL-C-5651B, Type II. Shock cord is used in landing gear to reduce shock transmitted to fuselage while landing and taxiing and on other shock mounting applications. Color coded to insure fresh stock. CW (Cold Weather)shock rings available on Special Order basis. Prices are approx. twice that of standard shock rings. Add "-CW" to standard part number when ordering. The MIL Fresh Shock Ring number is 1080HD. The ring size is 5/8" x 8". Test is 900 LBS. 4 units required. Note: Size listed is cord diameter x ID |
Application Chart
| Plane | Type | Part # | Size | Test Lbs | No. Req'd |
|---|---|---|---|---|---|
| Piper | PA-12 | 1080HD | 3/4" x 8" | 950 | 4 or 6 |
| Piper | PA-16 | 1080HD | 5/8" x 8" | 900 | 4 |
| Piper | 3013 | 1080HD | 5/8" x 8" | 900 | 4 |
| Piper | Planes ser. no. (18-3014 & up) | 1080HD | 5/8" x 8" | 900 | 4 |
| Piper | 2186 | 1080HD | 5/8" x 8" | 900 | 4 |
| Piper | PA-20 (1952 model & up) | 1080HD | 5/8" x 8" | 900 | 4 |
| Piper | PA-22 | 1080HD | 5/8" x 8" | 900 | 4 |
| Piper | PA-25 | 1080HD | 5/8" x 8" | 900 | 4 |
